Integrity you can hear

Axient Digital has been engineered from the ground up for professional productions that demand flawless execution. With an unprecedented level of signal stability and audio clarity, plus flexible hardware options, advanced connectivity, and comprehensive control, it’s a wireless system built to take on the challenges of today—and tomorrow.

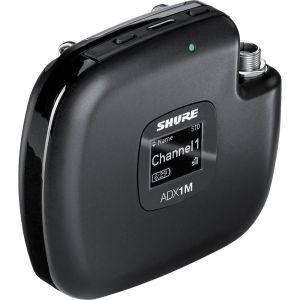

Both AD series and ADX series transmitters are compatible with a shared Axient Digital receiver platform. This scalable wireless system includes the groundbreaking ADX1M micro-bodypack which is an incredibly small, smooth bodypack with internal antenna for better concealment and more comfortable wear in theatre, broadcast and presentation applications.

Featuring a recessed Lemo connector and 7 hours operating time from the lithium-ion rechargeable battery, the ADX1M is also ShowLink enabled for remote transmitter control and automatic interference avoidance.

  Reliability is in the air.

With outstanding signal quality in even the most complex, crowded environments, Axient Digital ensures maximum stability, range, and clarity for uncompromising audio you can trust — anywhere, every time.

  • Next-Gen Digital Radio – A high-performance modulation scheme provides maximum signal stability.
  • Wide Tuning – Up to 184 MHz across all receivers and transmitters for broad strategic spectrum coverage.
  • Spectral Efficiency – A robust High Density mode dramatically increases system channel count.
  • Frequency Diversity – Two identical signals transmit on independent frequencies, with one taking over automatically should the other degrade.

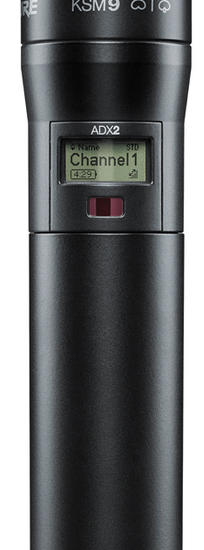

ADX2-K9B-MainNext-Gen Digital Radio & Channel Quality Metering

A high-performance modulation scheme provides maximum signal stability. The 5-segment Channel Quality meter allows for real-time analysis of RF signal-to-noise, enabling operating range assessments and visibility into potential interference.

True Digital Diversity

Mounting a better defense against multipath interference, fading events, and other RF anomalies, Axient Digital combines two discrete RF signals per receiver channel using a quality-based maximal-ratio-combining algorithm.

Quadversity™

By assigning four antenna inputs to a single channel, Quadversity™ can provide extended coverage and the option for separate zones, plus added resistance against multipath interference and RF noise.

Wide Tuning Receivers & Transmitters

An expansive tuning bandwidth of up to 184 MHz across all receivers and transmitters supplies broad strategic spectrum coverage while simplifying inventories for both sellers and operators.

Spectral Efficiency

The robust High Density transmission mode enables a dramatic increase in system channel count, with up to 63 active channels per 8-MHz TV band and no audio quality degradation.

Operating Range

Selectable transmission modes and power levels enable optimum range and audio quality, with analog-type resilience, artifact-free muting, and fast signal recovery at end of range.

Frequency Diversity

Signal quality is maximized by transmitting two identical signals on independent frequencies. If the active signal degrades, the other takes over automatically. With the ADX2FD handheld transmitter, Axient Digital monitors and combines the transmissions for a flawless audio signal.

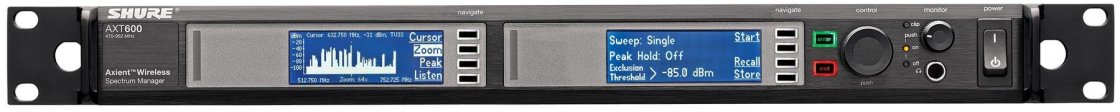

AXT600-frontInterference Detection & Avoidance

With real-time monitoring via the AXT600 Spectrum Manager, sound engineers can neutralize RF interference by manually switching the signal to a clear backup frequency, or by programming the system to do it automatically.



Hear Nothing but Quality.

Axient Digital defies limitations for both RF and audio quality. With industry-leading low latency, transparent frequency response, and wide dynamic range, Axient Digital lets nothing get in the way of true, pure sound. No matter the setting, you’ll hear Shure audio quality you can count on.

  • Ultra-Low Latency – Immersive latency guarantees seamless, cohesive sound.
  • Digital Outputs – Dante™ digital audio and AES3 outputs available.
  • Encryption – An AES 256-bit encrypted signal ensures secure transmission.

See through the noise.

ShowLink® remote control, Shure Wireless Workbench® software, the ShurePlus™ Channels app, and networked battery monitoring provide unmatched control and insight for seamless performance.

  • ShowLink – Real-time remote control of ADX transmitter parameters so settings can be changed right from the control booth.
  • Wireless Workbench – Robust control software with advanced RF spectrum and Timeline plotting, frequency coordination, and live monitoring.
  • ShurePlus Channels – Convenient mobile monitoring and control for iOS devices.
  • Networked Charging – Smart batteries and chargers provide remote monitoring of critical parameters.


For a hire quotation or more information please contact us on 020 8150 3398 or operations@txrxsound.com
